Dispenser Mode, Backfeed After Printing, with Media Sensor Enabled, and with Pulse Input

Operation

• The figure above shows the reference position when the Gap sensor is used.

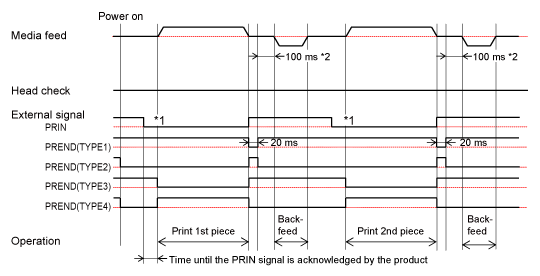

Timing Chart (Without Head Check)

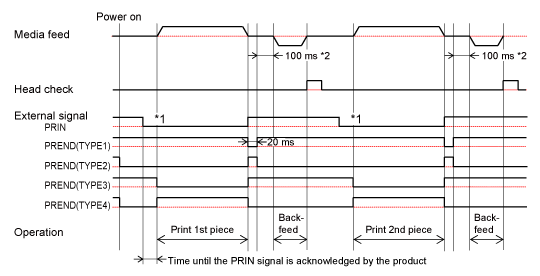

Timing Chart (With Head Check)

*1 Keep the PRIN (Print Start) signal until the PREND (Print End) signal is outputted.

*2 If you have selected [Enabled] for [Printing] > [Advanced] > [Printing Operations] > [Throughput Mode], then it is 7.5 ms.

---

Related Topics

[Throughput Mode]
