RFID Write with Continuous Mode (Tag Offset < 0, Feed Action)

When [Feed Action] is selected in [Interface] > [RFID] > [Tag Offset] > [Encoding Action], this operation will be performed.

*1 Because the EPC code read and RFID read [DC2]PJ commands acquire the information at this inlay position, do not use them.

*2 The EPC code write <IP0> command writes the data at this inlay position. The EPC code read, UID/EPC/IDm print <TU> and UID/EPC/IDm return <RU> commands acquire the information at this inlay position.

*3 When [Enabled] is selected for [Interface] > [External I/O] > [Print Start Signal] > [Enable].

• When the media position is not fixed, due to reasons such as the print head is unlocked under paper replacement, feed one piece of the label and perform the minus offset operation.

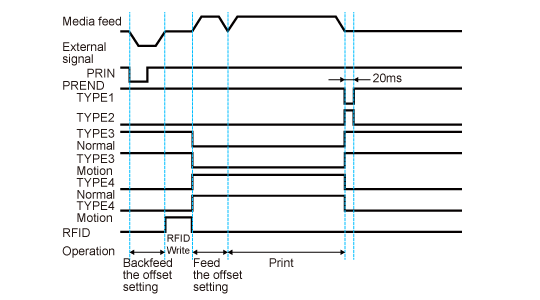

Timing Chart

Example) Print Start Signal : Enabled, QTY1

---
