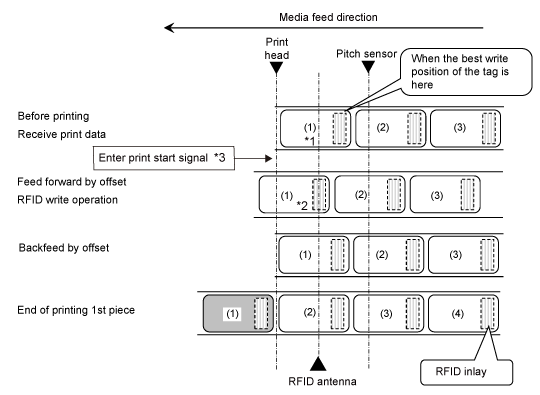

RFID Write with Continuous Mode (Tag Offset > 0, Feed Action)

When [Feed Action] is selected in [Interface] > [RFID] > [Tag Offset] > [Encoding Action], this operation will be performed.

*1 Because the EPC code read, RFID read [DC2]PJ, and UID/EPC/IDm print <TU> commands acquire the information at this inlay position, do not use them.

*2 The EPC code write <IP0> command writes the data at this inlay position. The EPC code read and UID/EPC/IDm return <RU> commands acquire the information at this inlay position.

*3 When [Enabled] is selected for [Interface] > [External I/O] > [Print Start Signal] > [Enable].

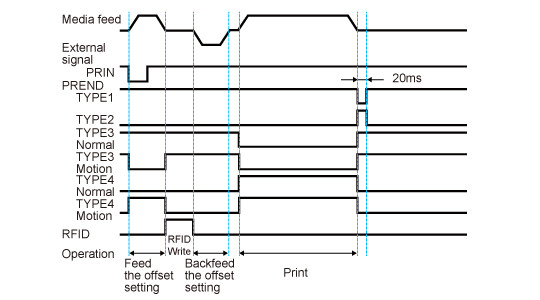

Timing Chart

Example) Print Start Signal : Enabled, QTY1

---
