Dispenser Mode, Backfeed Before Printing, with Extend Backfeed Operation Function Enabled, with Media Sensor Enabled, and with Pulse Input

Operation that is enabled when [Printing] > [Advanced] > [Printing Operations] > [Extended Backfeed Operation] is enabled.

Print data is received, and at the stage that printing is possible, then backfeed is done and the product waits for input of the Print Start signal (PRIN).

Operation

• The figure above shows the reference position when the Gap sensor is used.

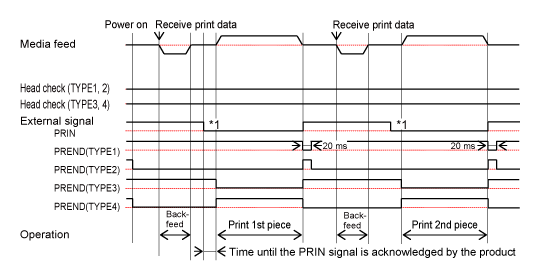

Timing Chart (Without Head Check)

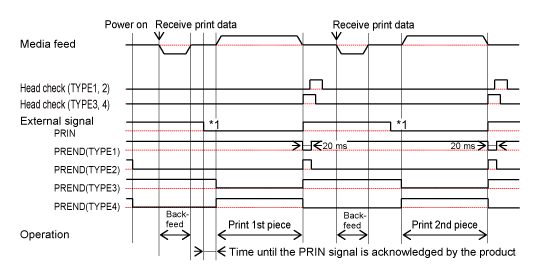

Timing Chart (With Head Check)

*1 Keep the PRIN (Print Start) signal until the PREND (Print End) signal is outputted.

---

Related Topics

[Extended Backfeed Operation]
