Adjusting the Settings Using Adjustments Mode during Printing

Follow the procedure below to adjust the offset position, print position, and print darkness during printing.

1.	Press the button while printing (in Online mode).

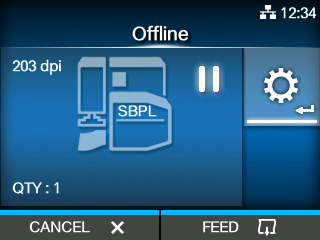

• You can also press the button to pause printing and switch the product to Offline mode while printing, and then press the button to open Adjustments mode.

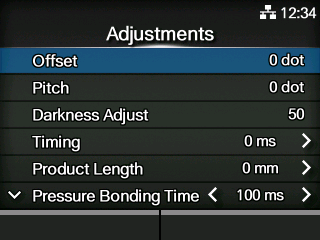

The Adjustments mode appears.

2.	Select an item and adjust the setting.

3.	Press the button to return to Online mode.

• Press the button to change to Online mode if you have opened Adjustments mode after opening Offline mode.

The print job resumes with the adjusted settings.

• When [Commands] is set in [Advanced] > [Prioritize] on the [Printing] menu and the print settings have been specified by command, the changes made in the Adjustments mode will be applied only to the data already analyzed at that time. The settings specified by command will be applied to the rest of the data.

---
