Installing the Optional Cutter Kit/Partial Cutter Kit

View the video here (it has no audio).

• Do not connect or disconnect the power cord while your hands are wet. Doing so could cause an electric shock.

• Do not touch the terminals with wet hands. • Touching the edge of the print head with your bare hand could cause injury. • Be careful not to touch the cutter blade.

　

View the video below for the procedure.

1.	Make sure that the product is powered off, and disconnect the power cord from the AC outlet or remove the optional battery.

2.	Press the cover open button (1) to open the top cover (2).

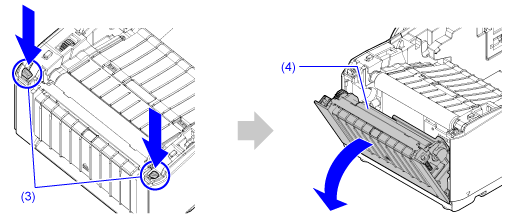

3.	While pushing the lock buttons (3) on both sides, tilt the dispenser kit (4) toward the front to remove it.

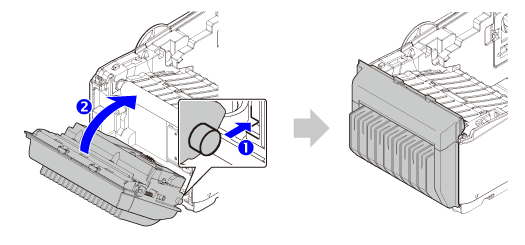

4.	Insert the pins of the cutter kit so that they are aligned with the guides (), and attach the top of the cutter kit so that it fits onto the product and the buttons on both sides click ().

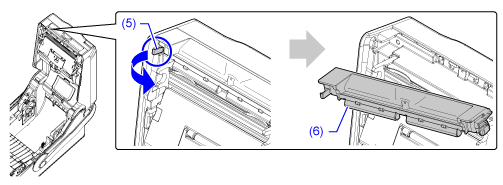

5.	Tilt the knob (5) on the left side toward the right to remove the front cover (6).

6.	Close the top cover.

Push both ends of the top cover, and close it firmly until it clicks.

• When closing the top cover, be careful not to pinch your fingers.

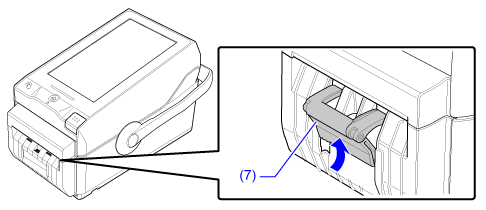

7.	When you use the linerless label and the protective cover is not attached, raise up the label stand (7) of the cutter kit until it clicks.

To use the cutter kit, make sure that [Type 1] is selected in the [Printing] > [Cutter Type] menu after you have installed it to the product.

When the [Printing] > [Auto-mode] function in the Settings mode is enabled, the print mode is set automatically according to the status of the installed option. To select a print mode manually, disable [Auto-mode] and select the print mode in the [Printing] > [Print Mode] menu.

---
