Installing the Optional Linerless Kit

View the video here (it has no audio).

• Do not connect or disconnect the power cord while your hands are wet. Doing so could cause an electric shock.

• The linerless platen roller and feed roller have protective stickers on them. Install the rollers after peeling off the stickers.

　

View the video below for the procedure.

1.	Make sure that the product is powered off, and disconnect the power cord from the AC outlet or remove the optional battery.

2.	Press the cover open button (1) to open the top cover (2).

3.	Push the two tabs (3) toward the back to remove the inner cover (4).

4.	Turn the levers (5) on both sides of the platen roller (6) toward the front and pull it out.

5.	Install the linerless platen roller (7) and turn the levers (8) on both sides toward the back.

6.	Attach the feed roller (9) while tilting the levers on both sides toward the center.

7.	Make sure the tabs are parallel to the product's frame on both sides () and the two rollers rotate in an interlocked manner ().

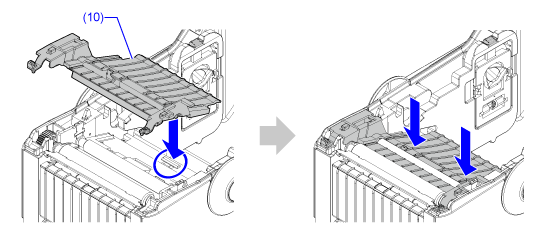

8.	Align the tab on the back of the inner cover for linerless kit (10) with the tab slot to attach the cover and press it in until it clicks.

9.	Close the top cover.

Push both ends of the top cover, and close it firmly until it clicks.

• When closing the top cover, be careful not to pinch your fingers.

Set the print mode according to its usage. To select a print mode manually, disable [Auto-mode] and select the print mode in [Print Mode] in the [Printing] menu of the Settings mode.

---
