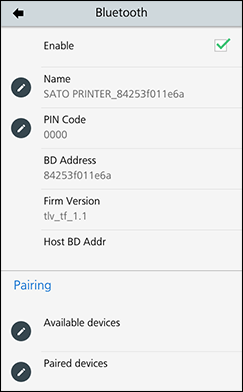

[Bluetooth] Menu

Appears only when the optional wireless LAN/Bluetooth kit is installed.

• Only [Paired devices] of the [Pairing] menu appears when the [Enable] menu is disabled.

The following settings are available in the [Bluetooth] menu:

[Enable]

Enable or disable the functions for Bluetooth.

[Name]

Set the device name for the product.

You can enter 1 to 53 characters. Alphabets (capital and small letters), numbers and symbols can be used.

[PIN Code]

Set the PIN code.

You can enter 4 to 16 characters for the PIN code. Alphabets (capital and small letters), numbers and symbols can be used.

[BD Address]

Shows the BD address of the product. (You cannot change this address.)

[Firm Version]

Shows the firmware version of the Bluetooth. (You cannot change this value.)

[Host BD Addr]

Check the Host BD address.

[Pairing]

Pair the product with a Bluetooth device.

The items are as follows:

Available devices

The product searches for a Bluetooth device and shows the name of the device.

Paired devices

Shows a list of previously paired device. Select a device to delete from the list.

• Only devices with an HFP, HSP, or HID Bluetooth profile appear in [Available devices]. For example, a headset, keyboard, or barcode scanner.

[IAP Ready]

Shows the operational status of the IAP authentication chip, enabling the communication between an iOS-equipped device and a Bluetooth device.

When the communication is enabled, is displayed.

[iOS Reconnect]

Disable the iOS reconnect function or set to the Manual mode.

The options are as follows:

Disabled

The product does not perform iOS reconnection. You need try reconnection from iOS device.

Manual

The product performs iOS reconnection when the product is powered on or it switches to online or offline.

[Authentication]

Set the authentication level.

The options are as follows:

None

None

Level 2-1

PIN code authentication, service level, no encryption

Level 2-2

PIN code authentication, service level, encryption

Level 3

PIN code authentication, link level, no encryption

Level 4

Secure Simple Pairing compatible, service level, encryption (Can be communicated with devices that are not compatible with Secure Simple Pairing)

[ISI]

Set the ISI communication parameter.

The setting range is from 0, or from 18 to 4096.

Set to a value that is higher than the ISW communication parameter setting value.

[ISW]

Set the ISW communication parameter.

The setting range is 0, or from 18 to 4096.

The setting range varies depending on the ISI communication parameter setting value.

Set to a value that is less than the ISI communication parameter setting value.

[PSI]

Set the PSI communication parameter.

The setting range is from 18 to 4096.

Set to a value that is higher than the PSW communication parameter setting value.

[PSW]

Set the PSW communication parameter.

The setting range is from 18 to 4096.

The setting range varies depending on the PSI communication parameter setting value.

Set to a value that is less than the PSI communication parameter setting value.

[CRC Mode]

Enable or disable the CRC check function.

[Flow Control]

Set the communication protocol.

The options are as follows:

•

[STATUS3]

•	[STATUS4 MULTI]

•

[NONE]

[HID control mode]

Set the HID control mode.

The options are as follows:

Standard

Standard mode. Normally use this setting.

Extension

Do not use this setting.

---
