Tools

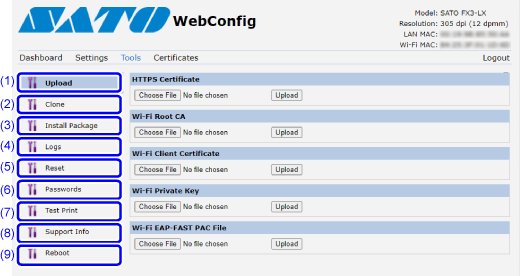

Various settings and operations can be performed in this page: installing certificates for authentication, checking the log, and test printing.

• Login is required to view the [Tools] page. Click [Login] to log in before opening the [Tools] page. The default user is [settings], and the default password is "0310". Change the password to secure the use of the product. Select [level1] in the [System] > [Password] > [Change Password] menu and set a new password.

(1) [Upload]

You can do the setting equivalent to [Tools] > [Install Certificates] in the Settings mode.

Install certificates used for Wi-Fi authentication and for HTTPS.

Click [Choose File] of the certificate you want to install.

Select the certificate file from the list and click [Upload], and the authentication file will be installed.

(2) [Clone]

You can do the setting equivalent to [Tools] > [Clone] in the Settings mode. Copy the current product settings and the data that is installed.

(3) [Install Package]

Contact your SATO reseller or technical support for more information of the package file.

(4) [Logs]

List all log files in the log directory. Users can click to download the file.

(5) [Reset]

Initialize the settings or data of the product.

(6) [Passwords]

You can do the setting equivalent to [System] > [Password] > [Change Password] in the Settings mode. Change the each password of the product.

(7) [Test Print]

You can do the setting equivalent to [Tools] > [Test Print] in the Settings mode. Perform a test print.

(8) [Support Info]

List various information of the product such as attached options, serial number, application versions and settings configuration.

You can also get a screenshot of the current product display and an image of the last printout.

(9) [Reboot]

Reboot the product.

---
