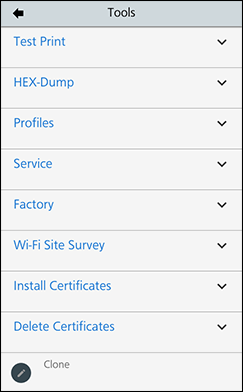

[Tools] Menu

The following settings are available in the [Tools] menu:

[Test Print]

Perform a test print.

The setting items are as follows:

[Factory]

Perform the factory test print.

1.	Check and set the items as listed on the [Factory] menu.

2.	Tap to start the test print. Tap to pause the print.

To stop the test print, first pause the print and then tap .

　

The setting items are as follows:

Label Width

Shows the necessary media width of the test print.

The necessary media width is 76.2 mm (3") for [Large].

Pitch

Set the print position in the vertical direction.

The setting range is from -45 to +45 dots.

When you decrease the setting value, the print position moves in the feed direction.

When you increase the setting value, the print position moves opposite the feed direction.

Offset

Set the tear-off position/cut position/dispense stop position.

The setting range is from -45 to +45 dots.

When you decrease the setting value, the stop position moves in the feed direction.

When you increase the setting value, the stop position moves opposite the feed direction.

Darkness Adjust

Fine tune the print darkness of the test print.

0 is the lightest and 99 is the darkest.

• The length of 1 dot is 0.083 mm (0.0033"). • You can change the units to dots, " (inches), or mm in the [System] > [Regional] > [Unit] menu. • The value of [Pitch], [Offset] and [Darkness Adjust] set in the [Factory] menu will be reflected to the same item settings in the [Configure List] menu, [Configure QR] menu, [Paper Sensor] menu and [BD address] menu.

[Configure List]

Print the product setting information.

1.	Check and set the items as listed on the [Configure List] menu.

2.	Tap to start the test print. Tap to pause the print.

To stop the test print, first pause the print and then tap .

　

The setting items are as follows:

Category

Select the category of the list to print.

The options are as follows:

◦

[All]

◦	[Information]

◦	[Printing]

◦	[Interface]

◦	[Applications]

◦

[System]

Label Width

Shows the necessary media width of the test print.

The necessary media width is 50.8 mm (2") for [Small].

Label Length

Set the length of one piece of the media used for the test print.

The setting range is from 600 to 2400 dots.

Pitch

Set the print position in the vertical direction.

The setting range is from -45 to +45 dots.

When you decrease the setting value, the print position moves in the feed direction.

When you increase the setting value, the print position moves opposite the feed direction.

Offset

Set the tear-off position/cut position/dispense stop position.

The setting range is from -45 to +45 dots.

When you decrease the setting value, the stop position moves in the feed direction.

When you increase the setting value, the stop position moves opposite the feed direction.

Darkness Adjust

Fine tune the print darkness of the test print.

0 is the lightest and 99 is the darkest.

• The length of 1 dot is 0.083 mm (0.0033"). • You can change the units to dots, " (inches), or mm in the [System] > [Regional] > [Unit] menu. • The value of [Label Length], [Pitch], [Offset] and [Darkness Adjust] set in the [Configure List] will be reflected to the same item settings in the [Factory] menu, [Configure QR] menu, [Paper Sensor] menu and [BD address] menu.

[Configure QR]

Print the product setting information with a QR code.

1.	Check and set the items as listed on the [Configure QR] menu.

2.	Tap to start the test print. Tap to pause the print.

To stop the test print, first pause the print and then tap .

　

The setting items are as follows:

Category

Select the category of the list to print.

The options are as follows:

◦

[All]

◦	[Information]

◦	[Printing]

◦	[Interface]

◦	[Applications]

◦

[System]

Label Width

Shows the necessary media width of the test print.

The necessary media width is 50.8 mm (2") for [Small].

Label Length

Set the length of one piece of the media used for the test print.

The setting range is from 600 to 2400 dots.

Pitch

Set the print position in the vertical direction.

The setting range is from -45 to +45 dots.

When you decrease the setting value, the print position moves in the feed direction.

When you increase the setting value, the print position moves opposite the feed direction.

Offset

Set the tear-off position/cut position/dispense stop position.

The setting range is from -45 to +45 dots.

When you decrease the setting value, the stop position moves in the feed direction.

When you increase the setting value, the stop position moves opposite the feed direction.

Darkness Adjust

Fine tune the print darkness of the test print.

0 is the lightest and 99 is the darkest.

• The length of 1 dot is 0.083 mm (0.0033"). • You can change the units to dots, " (inches), or mm in the [System] > [Regional] > [Unit] menu. • The value of [Label Length], [Pitch], [Offset] and [Darkness Adjust] set in the [Configure QR] will be reflected to the same item settings in the [Factory] menu, [Configure List] menu, [Paper Sensor] menu and [BD address] menu.

[Paper Sensor]

Print the detection result of the media sensor level.

1.	Check and set the items as listed on the [Paper Sensor] menu.

2.	Tap to start the test print. Tap to pause the print.

To stop the test print, first pause the print and then tap .

　

The setting items are as follows:

Label Width

Shows the necessary media width of the test print.

The necessary media width is 50.8 mm (2") for [Small].

Label Length

Set the length of one piece of the media used for the test print.

The setting range is from 600 to 2400 dots.

Pitch

Set the print position in the vertical direction.

The setting range is from -45 to +45 dots.

When you decrease the setting value, the print position moves in the feed direction.

When you increase the setting value, the print position moves opposite the feed direction.

Offset

Set the tear-off position/cut position/dispense stop position.

The setting range is from -45 to +45 dots.

When you decrease the setting value, the stop position moves in the feed direction.

When you increase the setting value, the stop position moves opposite the feed direction.

Darkness Adjust

Fine tune the print darkness of the test print.

0 is the lightest and 99 is the darkest.

• The length of 1 dot is 0.083 mm (0.0033"). • You can change the units to dots, " (inches), or mm in the [System] > [Regional] > [Unit] menu. • The value of [Label Length], [Pitch], [Offset] and [Darkness Adjust] set in the [Paper Sensor] will be reflected to the same item settings in the [Factory] menu, [Configure List] menu, [Configure QR] menu and [BD address] menu.

[BD address]

Print the BD address.

1.	Check and set the items as listed on the [BD address] menu.

2.	Tap to start the test print. Tap to pause the print.

To stop the test print, first pause the print and then tap .

　

The setting items are as follows:

Label Width

Shows the necessary media width of the test print.

The necessary media width is 76.2 mm (3") for [Large].

Pitch

Set the print position in the vertical direction.

The setting range is from -45 to +45 dots.

When you decrease the setting value, the print position moves in the feed direction.

When you increase the setting value, the print position moves opposite the feed direction.

Offset

Set the tear-off position/cut position/dispense stop position.

The setting range is from -45 to +45 dots.

When you decrease the setting value, the stop position moves in the feed direction.

When you increase the setting value, the stop position moves opposite the feed direction.

Darkness Adjust

Fine tune the print darkness of the test print.

0 is the lightest and 99 is the darkest.

• The length of 1 dot is 0.083 mm (0.0033"). • You can change the units to dots, " (inches), or mm in the [System] > [Regional] > [Unit] menu. • The value of [Pitch], [Offset] and [Darkness Adjust] set in the [BD address] will be reflected to the same item settings in the [Factory] menu, [Configure List] menu, [Configure QR] menu and [Paper Sensor] menu.

[HEX-Dump]

Save the hex dump print data or dump data from the receive buffer to the USB memory.

The setting items are as follows:

[Hex Dump Mode]

Enable or disable the Hex Dump mode.

If you enable [Hex Dump Mode], the product prints the received data and at the same time creates a file of the received data inside "hexdump/".

If you return the setting to disabled, you can check the file on the screen.

• If you enable [Hex Dump Mode], the design of the Online/Offline screen changes. • You can save a maximum of 10 received data files for each type of interface. Depending on the file size, the number of files you can save will be less than 10. • The details of the files created inside "hexdump/" of the product are as follows: BT00xx.bin Received data through Bluetooth. LAN00xx.bin (USB+LAN model only) Received data through LAN. NFC00xx.bin Received data through NFC. PIPE00xx.bin Received data through pipe. USB00xx.bin Received data through USB. WIFI00xx.bin Received data through wireless LAN.

[Buffer Dump]

Save the receive buffer data to the product.

Available only if you disabled the [Hex Dump Mode] menu.

Tap [START] on the startup screen to save the data to the product.

Save the receive buffer data to "buff/" in the product.

• The data files of the receive buffer are created for each type of interface. • The details of the file created inside "buff/" of the product are as follows: BT0001.bin The contents of the receive buffer for Bluetooth. LAN0001.bin (USB+LAN model only) The contents of the receive buffer for LAN. NFC0001.bin The contents of the receive buffer for NFC. PIPE0001.bin The contents of the receive buffer for pipe. USB0001.bin The contents of the receive buffer for USB. WIFI0001.bin The contents of the receive buffer for wireless LAN. • If you perform the [Buffer Dump] again, the existing file will be overwritten.

[Log Files]

The setting items are as follows:

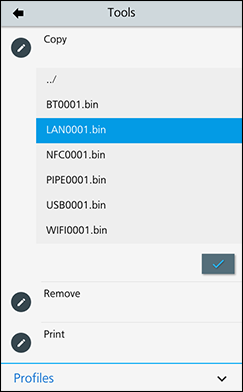

[Copy]

Copy the log files of the product to the USB memory.

Available only if you have connected the USB memory.

• Be sure to perform a virus check on the USB memory before connecting it to the product. SATO Corporation shall not be held responsible for any product malfunctions caused by a virus spread via USB memory.

The procedure to copy the log files is as follows:

1.	Tap the file type from the list to copy.

◦

buff/

The buffer data saved after you perform the [Buffer Dump].

◦

hexdump/

The received data created through [Hex Dump Mode].

2.	Tap the file to copy. The selected file name is highlighted.

3.	Tap to copy the selected file to the USB memory.

• When [Hex Dump Mode] is enabled, it may take some time before the files appear.

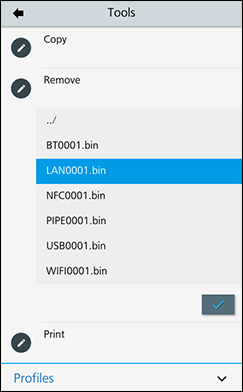

[Remove]

Delete the log files of the product.

The procedure to delete the log files is as follows:

1.	Tap the file type from the list to delete.

◦

buff/

The buffer data saved after you perform the [Buffer Dump].

◦

hexdump/

The received data created through [Hex Dump Mode].

2.	Tap the file to delete. The selected file name is highlighted.

3.	Tap to delete the selected file.

• When [Hex Dump Mode] is enabled, it may take some time before the files appear.

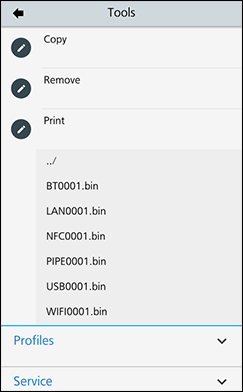

[Print]

Print a hex dump of the log files of the product.

The procedure to print the log files is as follows:

1.	Tap the file type from the list to print.

◦

buff/

The buffer data saved after you perform the [Buffer Dump].

◦

hexdump/

The received data created through [Hex Dump Mode].

2.	Tap the file to print. The Offline screen appears.

3.	Tap [PRINT] to start printing.

• Printing the contents of the file may use a lot of media.

• When [Hex Dump Mode] is enabled, it may take some time before the files appear.

[Profiles]

Maintain the customized profile of the product settings.

The current profile name is shown in the [Load] and [Save] menus.

The setting items are as follows:

[Delete]

Delete the profile of the product.

Not available if no profile is saved.

The procedure to delete the profile is as follows:

1.	Tap the profile to be deleted.

2.	Tap on the message.

The profile name is deleted from the list.

[Load]

Load the profile of the product.

Not available if no profile is saved.

The procedure to load the profile is as follows:

1.	Tap the profile to be loaded.

2.	Tap on the message.

[Save]

Overwrite the current profile and save the current product settings.

Not available if no profile is saved.

The screen shows a list of the profiles saved in the product.

The procedure to overwrite a current profile and save the current product settings is as follows:

1.	Tap the profile to be overwritten.

2.	Tap on the message.

[Save as]

Save the current product settings as a new profile.

Enter a name for the profile to be saved as.

You can enter a maximum of 32 characters. You can use alphabet (capital and small letters), numbers and symbols.

Tap on the on-screen keyboard to confirm.

The new profile name appears on the [Save], [Load] and [Start with] lists.

[Start with]

Select the profile to be loaded at product startup.

Not available if no profile is saved.

The procedure to load the profile at product startup is as follows:

1.	Tap the profile to be loaded at product startup.

2.	Tap on the message.

[Service]

These are the setting items for service.

Strictly for SATO authorized service personnel use.

[Factory]

These are the setting items for factory.

Strictly for SATO authorized service personnel use.

[Wi-Fi Site Survey]

Make a survey of the wave strength for each access point and display or print the survey results.

Appears only when the optional wireless LAN/Bluetooth kit is installed.

The options are as follows:

SiteSurveyDisp.

Shows the wave strength for each access point.

SiteSurveyPrint

Prints the wave strength for each access point.

[Install Certificates]

Install certificates used for Wi-Fi authentication and for HTTPS.

Available only if you have connected the USB memory.

• Be sure to perform a virus check on the USB memory before connecting it to the product. SATO Corporation shall not be held responsible for any product malfunctions caused by a virus spread via USB memory.

The setting items are as follows:

HTTPS

Installs the HTTPS certificates from the USB memory.

Wi-Fi Root CA

Installs the Wi-Fi Root CA certificates from the USB memory.

Wi-Fi Client

Installs the Wi-Fi client certificates from the USB memory.

Wi-Fi Private Key

Installs the Wi-Fi private key from the USB memory.

EAP-FAST PAC File

Installs the EAP-FAST PAC file from the USB memory.

FTPS/SCP Client

Installs the FTPS/SCP client certificates from the USB memory.

The procedure to install the certificates and PAC files is as follows:

1.	Save the certificate files to the USB thumb drive memory’s root folder.

Acceptable file extensions are as follows:

◦	.pem, .crt, .cer, .der for Root CA and client certificate in PEM or DER format

◦	.pfx and .p12 for client certificates in PKCS #12 format

◦	.prv and .key for private keys in PEM/PKCS#8 format

◦	.pac for PAC files

2.	Insert the USB memory into the USB connector (Type A).

3.	Go to the [Settings] > [Tools] > [Install Certificates] menu.

4.	Tap the certificate you want to install. Refer to the item description above.

5.	Tap the certificate file from the list.

[Delete Certificates]

Delete certificates used for Wi-Fi authentication and for HTTPS.

HTTPS

Deletes the installed HTTPS certificates.

Wi-Fi Root CA

Deletes the installed Wi-Fi Root CA certificates.

Wi-Fi Client

Deletes the installed Wi-Fi client certificates.

Wi-Fi Private Key

Deletes the installed Wi-Fi private key.

EAP-FAST PAC File

Deletes the installed EAP-FAST PAC file.

The procedure to delete the certificates and PAC files is as follows:

1.	Go to the [Settings] > [Tools] > [Delete Certificates] menu.

2.	Tap the certificate you want to delete. Refer to the item description above.

3.	Tap on the message.

[Clone]

Copy the current product settings and installed data to the USB memory.

Available only if you have connected the USB memory.

• Be sure to perform a virus check on the USB memory before connecting it to the product. SATO Corporation shall not be held responsible for any product malfunctions caused by a virus spread via USB memory.

This function is useful when you take over the product settings to be replaced to a new product, and when you set up multiple products with same product settings.

The options are as follows:

Excl. LAN/Wi-Fi/IP/Bluetooth

Copy the product settings and data, excluding network information and Bluetooth device name, to the USB memory. This is useful when you set up multiple products already configured for network with the same product settings.

Incl. LAN/Wi-Fi/Bluetooth

Copy the product settings and data, including network information (excluding the IP address) and Bluetooth device name, to the USB memory. This is useful when you set up multiple products to be connected to the same network with the same product settings.

Incl. LAN/Wi-Fi/IP/Bluetooth

Copy the product settings and data, including network information (with the IP address) and Bluetooth device name, to the USB memory. This is useful when carrying the settings of the product to be replaced to a new product.

[Startup Guide]

Enable or disable the startup guide.

If you enable this function, the startup guide appears when you power on the product.

---

Related Topics

Settings Mode Operations

Setting Value Input

[Unit]
