Media Sensor Type

The product adjusts the print position precisely by detecting I-marks or Gaps on the media (label) using media sensors.

The I-marks or Gaps on each type of media are as follows:

Label Type	Position
I-mark Label	Center I-mark (1) Media feed direction
	Bottom I-mark (1) Media feed direction
	Top I-mark (1) Media feed direction
	Labels with I-marks other than our specifications (Custom I-mark) This I-mark position is an example. (1) Media feed direction
Gap label	(1) Media feed direction
I-mark journal paper/linerless label	(1) Media feed direction

Set the sensor type to detect the print position according to the media to be used.

Set the sensor type according to the following procedure:

1.	Tap on the Home screen or Offline screen to show the [Settings] menu.

2.	Input the password if it is enabled.

3.	Tap [Printing].

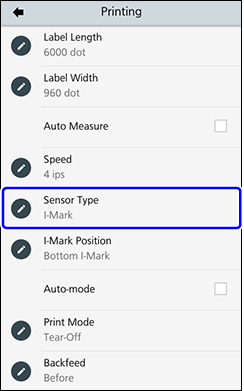

4.	Tap [Sensor Type].

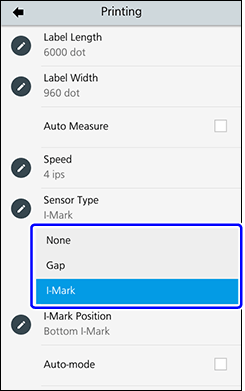

5.	Tap the sensor type to detect the print position.

[None]

Disables the media sensor.

[Gap]

Select this option when using gap type media. Use the transmissive type sensor.

[I-Mark]

Select this option when using I-mark type media. Use the reflective type sensor.

Set the I-mark position in the [I-Mark Position] menu.

• If [Dispenser] is selected in the [Print Mode] menu, only [Gap] and [I-Mark] will be available. • If you have selected [Linerless tearoff] or [Linerless cutter] in the [Print Mode] menu, only [None] and [I-Mark] will be available.

---
