Adjusting the Print Position

Set the [Pitch] in the [Printing] > [Advanced] > [Adjustments] menu to adjust the print position.

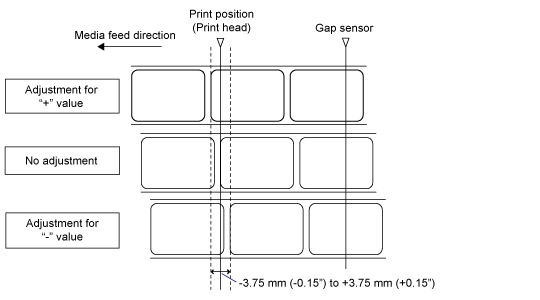

• The above reference position (print position) is the stop position when the media sensor type is set to Gap.

1.	When the product is in Online mode, press the button on the operator panel to change to Offline mode.

2.	Press the button to show the [Settings] menu.

• Input the password if it is enabled.

3.	Select [Printing] using the / buttons, and then press the button.

4.	Select the [Advanced] > [Adjustments] > [Pitch] menu using the / buttons, and then press the button.

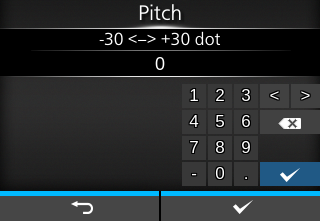

The [Pitch] screen appears.

5.	Change the setting value. Press the /// buttons to select a number and then press the button to enter the number to the text box.

The setting range is from -30 to +30 dots.

• Depending on the operating mode, if the setting is higher than -8dot, the labels may fall off the rollers or the back edge of the labels may be folded. If this happens, set the print position in the [Printing] > [Imaging] menu. • You can change the units to dots, " (inches), or mm in the [System] > [Regional] > [Unit] menu.

6.	Press the button () to save the setting value.

7.	Press the button to change to Offline mode.

8.	Press the button again to change to Online mode.

You can print to check the adjusted print position.

• While the print job is paused, the [Adjustments] menu will appear instead of the [Settings] menu and you can adjust the print position.

---
