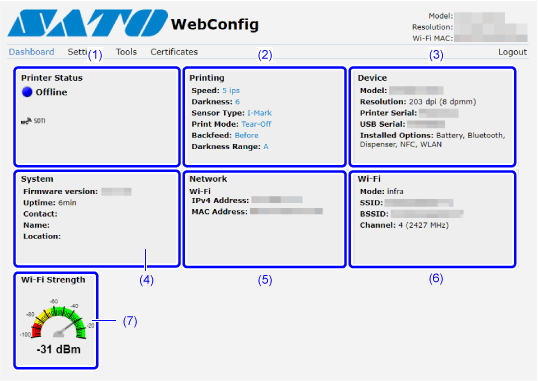

Dashboard

[Dashboard] is the default page for the web configuration page. Each section shows specific information or the current status of the product.

(1) [Printer Status]

Shows the current state (online, offline, error) and current status icons.

(2) [Printing]

Shows the print speed, darkness, sensor, print mode and backfeed setting.

(3) [Device]

Shows the model, current resolution and options that are installed.

(4) [System]

Shows the current firmware version, uptime, SNMP contact, name and location.

(5) [Network]

Shows the current IP address and MAC address of the active interface.

• Click [Login] to log in for viewing. The default setting for user is [settings], and for password is "PCB serial number (8 digits of uppercase English letters and numerals) +user". You can confirm the PCB serial number by executing [Configure List] from the [Tools] > [Test Print] menu. ◦ Input "+" with a symbol. • Change the password to secure the use of the product. Select [level1] in the [System] > [Password] > [Change Password] menu and set a new password.

(6) [Wi-Fi]

Shows the current Wi-Fi setting.

• Click [Login] to log in for viewing. The default setting for user is [settings], and for password is "PCB serial number (8 digits of uppercase English letters and numerals) +user". You can confirm the PCB serial number by executing [Configure List] from the [Tools] > [Test Print] menu. ◦ Input "+" with a symbol. • Change the password to secure the use of the product. Select [level1] in the [System] > [Password] > [Change Password] menu and set a new password. • This information is shown only if Wi-Fi is available and active.

(7) [Wi-Fi Strength]

Shows the current Wi-Fi communication strength.

• If the product is P2P GO, the Wi-Fi Strength will not be shown.

---
