Operations in Online/Offline Mode

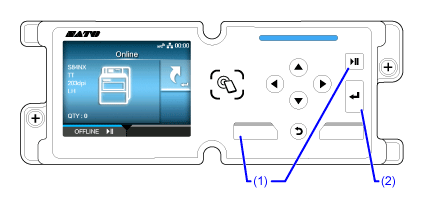

Online Mode

In Online mode, you can execute the print job.

In the default settings, the product powers on in Online mode.

(1) Change to Offline mode.

(2) Shows the [Shortcut] menu.

You can change various settings during printing by registering them to the [Shortcut] menu in advance.

• When setting values are changed from the [Shortcut] menu during printing, the timing at which the changed values are reflected in the printing varies depending on the setting item. • Some of the setting items registered to the [Shortcut] menu cannot be changed in Online mode or in Offline mode with the print job (paused). • You can use the [Printing] > [Advanced] > [Start Online] menu in the Settings mode to set whether the product starts in Online mode or Offline mode when powering on.

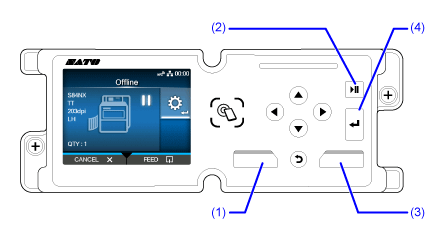

Offline Mode

In Offline mode, the print job will stop.

You can show the Settings mode, cancel the print job or feed the media.

(1) Cancel the print job.

When there are no print jobs, the product changes to Online mode.

(2) Change to Online mode.

(3) Feed the media.

(4) Shows the Settings mode.

• If you enter the Settings mode while the print job is paused, the timing when the value changed in the Settings mode is reflected in the printing varies depending on the setting item.

Displays Shared in Online/Offline Mode

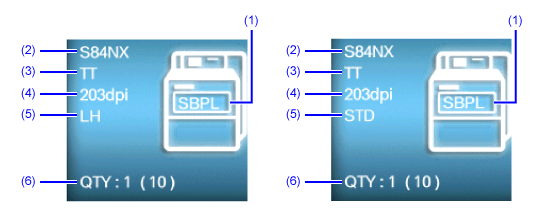

The following information appears on the left side of the screen.

(1) Current printer language

You can set the printer language in the [Applications] > [Protocol] menu in the Settings mode.

(2) Model name

(3) Print Method of the product

Shows whether the product is combined direct thermal/thermal transfer model (TT), or direct thermal only model (DT).

(4) Resolution of the product

(5) Product orientation

Shows either LH/RH or STD/OPP, depending on the country/region in which the product was purchased.

(6) Number of pages in the print job being processed

When the [System] > [Show Total Count] menu in the Settings mode is enabled, the total number of pages printed from after the power was turned on is shown in parentheses.

---
