Dispense & Print Mode, Backfeed Before Printing, with Media Sensor Enabled, and with Pulse Input

Operation

*1 If the next data is received before printing finishes, then the next print operation is done and dispensing stops at the dispensing position.

*2 If the next data is not completed before printing is finished, then blank media is fed and dispensing stops at the dispensing position.

• The figure above shows the reference position when the Gap sensor is used.

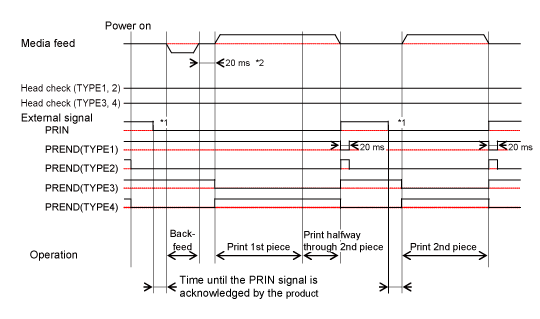

Timing Chart (Without Head Check)

• If print data contains the RFID command, then printing stops temporarily after printing 1 label. In this case, the external signal input operations are the same as when head check is enabled. • If you have selected [Enabled] in the [Printing] > [Advanced] > [Calendar Setting Mode] > [Calendar Reprint] menu or the [Interface] > [External I/O] > [EXT I/O Re-print] > [Enhanced Reprint] menu, then it is the operation of dispenser mode.

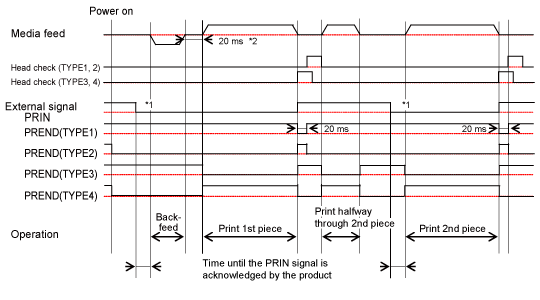

Timing Chart (With Head Check)

• It is recommended to use TYPE3 or TYPE4 PREND (Print End) signal. • If you have selected [Enabled] in the [Interface] > [External I/O] > [EXT I/O Re-print] > [Enhanced Reprint] menu, then it is the operation of dispenser mode.

*1 Keep the PRIN (Print Start) signal until the PREND (Print End) signal is outputted.

*2 If you have selected [Enabled] for [Printing] > [Advanced] > [Printing Operations] > [Throughput Mode], then it is 7.5 ms.

---
