Dispenser Mode, Backfeed After Printing with External Control (Signal) Input, with Media Sensor Enabled, and with Pulse Input

Operation

• The figure above shows the reference position when the Gap sensor is used. • If [Interface] > [External I/O] > [Print Start Signal] > [Feed] is enabled, PRIN (Print Start) signal will operate as the FEED signal. For this reason, backfeed will be executed without waiting for PRIN (Print Start) or DISPENSE IN signal.

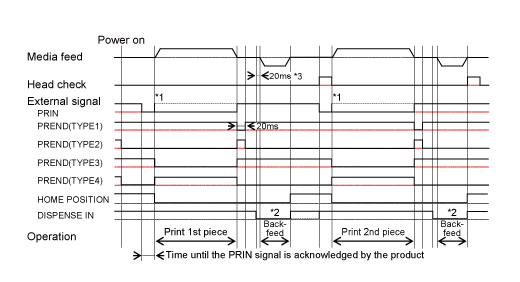

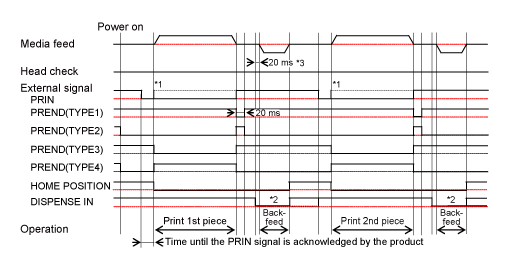

Timing Chart (Without Head Check)

Timing Chart (With Head Check)

*1 Keep the PRIN (Print Start) signal until the PREND (Print End) signal is outputted. And then, turn the PRIN (Print Start) signal off before the PREND (Print End) signal detects that printing has ended.

*2 Keep the DISPENSE IN signal until the Home Position signal is output. And then, turn the DISPENSE IN signal off before the PRIN (Print Start) signal is input.

*3 If you have selected [Enabled] for [Printing] > [Advanced] > [Printing Operations] > [Throughput Mode], then it is 7.5 ms.

---
