Adjusting the Print Speed

The adjustment of the print speed not only changes the speed of printing but also affects the print quality.

The setting range of the print speed varies depending on the following print resolution:

Resolution	S84NX	S86NX
203 dpi (8 dots/mm)	4 to 16 ips (inches/sec) (101.6 to 406.4 mm/sec)	4 to 14 ips (inches/sec) (101.6 to 355.6 mm/sec)
305 dpi (12 dots/mm)	4 to 14 ips (inches/sec) (101.6 to 355.6 mm/sec)	4 to 12 ips (inches/sec) (101.6 to 304.8 mm/sec)
609 dpi (24 dots/mm)	2 to 6 ips (inches/sec) (50.8 to 152.4 mm/sec)	-

• When the [Printing] > [Advanced] > [Prioritize] menu has been set to [Commands] and the print speed is specified by command, the data will be printed with the print speed specified by the command. • You can adjust the print speed during printing by registering the [Speed] menu to the [Shortcut] menu in advance. • If [Enabled] is selected in the [Micro Label Print Mode] menu, the print speed has a maximum of 4 ips (inches/second).

1.	When the product is in Online mode, press the button to change to Offline mode.

2.	Press the button to show the [Settings] menu.

• Input the password if it is enabled.

3.	Press the / buttons to select [Printing], and then press the button.

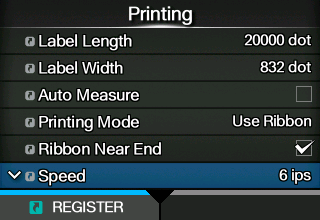

4.	Press the / buttons to select [Speed], and then press the button.

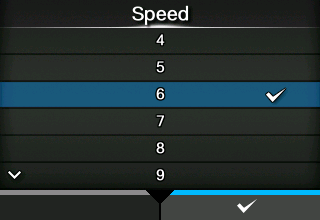

The [Speed] screen appears.

5.	Press the / buttons to select a value.

6.	Press the button or button to save the setting value.

7.	Press the button to change to Offline mode.

8.	Press the button again to change to Online mode.

You can print to check the print quality.

---
