Tools

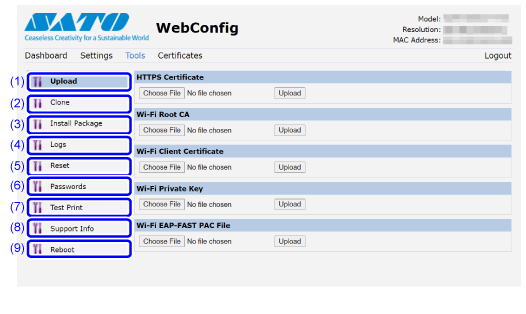

Various settings and operations can be performed in this page: installing certificates for authentication, checking the log, and test printing.

• Login is required to view the [Tools] page. Click [Login] to log in before opening the [Tools] page. • The default setting for user is [settings], and for password is "USB serial number (8 digits of uppercase English letters and numerals) +user". Input "+" with a symbol. You can confirm the USB serial number in the following ways. ◦ [USB Serial] item on [Device] on the [Dashboard] page of the web configuration page ◦ [Information] > [USB Serial] menu ◦ Test print results executed by [Tools] > [Test Print] > [Configure List] menu • Change the password to secure the use of the product. Select [level1] in the [System] > [Password] > [Change Password] menu and set a new password.

(1) [Upload]

Click [Choose File] of the certificate you want to install.

Select the certificate file from the list and click [Upload], and the authentication file will be installed.

(2) [Clone]

You can do the setting equivalent to [Tools] > [Clone] in the Settings mode. Copy the current product settings and the data that is installed.

(3) [Install Package]

Contact your SATO reseller or technical support for more information of the package file.

(4) [Logs]

List all log files in the log directory. Users can click to download the file.

(5) [Reset]

You can do the setting equivalent to [Tools] > [Reset] in the Settings mode. Initialize the setting values and data saved on the product.

(6) [Passwords]

You can do the setting equivalent to [System] > [Password] > [Change Password] in the Settings mode. Change the each password of the product.

(7) [Test Print]

You can do the setting equivalent to [Tools] > [Test Print] in the Settings mode. Perform a test print.

(8) [Support Info]

You can do the setting equivalent to [Tools] > [Support Info] in the Settings mode.

You can also get a screenshot of the current product display and an image of the last printout.

(9) [Reboot]

Reboot the product.

---
