Adjusting the Dispenser Stop Position

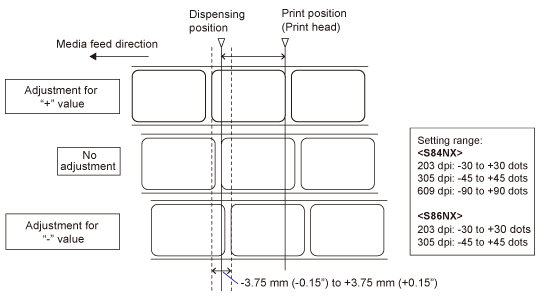

Set the [Offset] in the [Printing] > [Advanced] > [Adjustments] menu to adjust the dispenser stop position.

• The above dispenser stop position indicates the stop position when the media sensor type is set to Gap. • You can adjust the dispenser stop position during printing by registering the [Adjustments] menu to the [Shortcut] menu in advance.

1.	When the product is in Online mode, press the button on the operator panel to change to Offline mode.

2.	Press the button to show the [Settings] menu.

• Input the password if it is enabled.

3.	Select [Printing] using the / buttons, and then press the button.

4.	Select the [Advanced] > [Adjustments] > [Offset] menu using the / buttons, and then press the button.

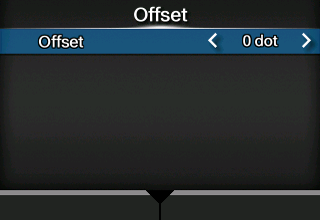

5.	Change the setting value. Press the / to increase or decrease the value by 1.

• Changes are saved and applied instantly.

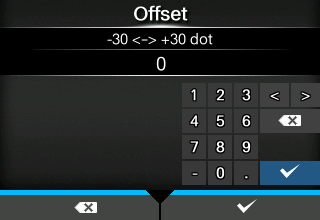

Press the button to enter a numeric value.

• Press the /// buttons to select a number and then press the button to enter the number to the text box.

The setting range is as follows:

Resolution	S84NX	S86NX
203 dpi (1 dot = 0.125 mm (0.0049"))	-30 to +30 dots	-30 to +30 dots
305 dpi (1 dot = 0.083 mm (0.0033"))	-45 to +45 dots	-45 to +45 dots
609 dpi (1 dot = 0.042 mm (0.0017"))	-90 to +90 dots	-

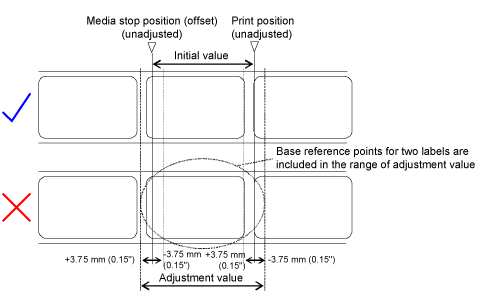

• Do not allow the distance between [Pitch] and [Offset] after adjustments to exceed the size of 1 label (including liner). • You can change the units to dots, " (inches), or mm in the [System] > [Regional] > [Unit] menu.

6.	Press the button to save the setting value.

7.	Press the button to change to Offline mode.

8.	Press the button again to change to Online mode.

You can print to check the adjusted dispenser stop position.

---
