Adjusting the Print Image Position (CL4NX/CL6NX/CL4NX Plus/CL6NX Plus/S84NX/S86NX)

• This manual uses screenshots of the CL4NX series printer in its descriptions. The screen is slightly different when using the S84NX/S86NX series printers.

Depending on the PDF data, you may need to adjust the print image position.

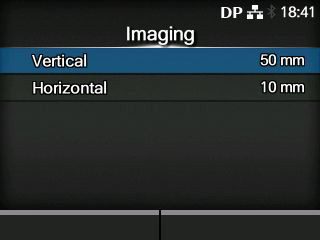

You can adjust the print image position in the [Settings] > [Printing] > [Imaging] menu.

Set the print reference position in the vertical and horizontal directions.

[Vertical]

Set the print position in the vertical direction.

Set the correction value from the print reference position as “-” for the direction of the paper feed and “+” for the direction opposite to the paper feed.

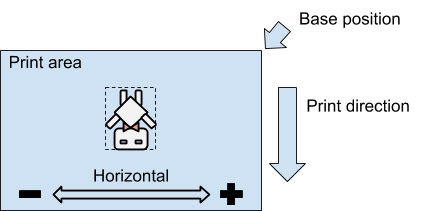

[Horizontal]

Set the print position in the horizontal direction.

Set the correction value from the print reference position when facing the product as “+” to adjust to the right side and “-” to adjust to the left side.

　

---
