License Activation (CT4-LX)

The PDF Direct Print license is initially activated on the printer if the user has already purchased the license. A license activation key is required to perform the activation.

If the license is not activated, the PDF Direct Print will be running on Demo mode.

• The license activation should be performed by SATO technical support personnel.

The license activation procedure intended for SATO technical support personnel is as follows:

1.	Tap [SETTINGS] on the Home screen or Offline screen.

2.	Enter the password if it is enabled.

3.	Tap [Applications] to enter Applications mode.

4.	Tap [DIRECT PRINT] to enter DIRECT PRINT mode.

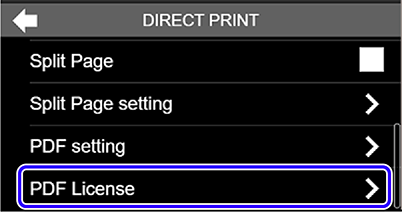

5.	Tap [PDF License].

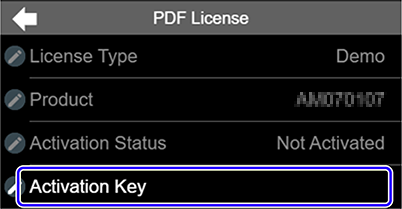

6.	Tap [Activation Key].

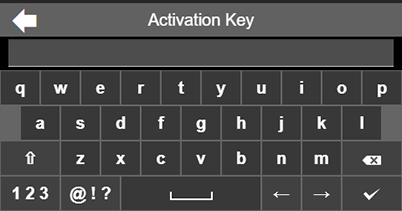

7.	Enter the license activation key.

The activation key is an 8-digit number issued by the license management server.

8.	Tap to save the entered activation key.

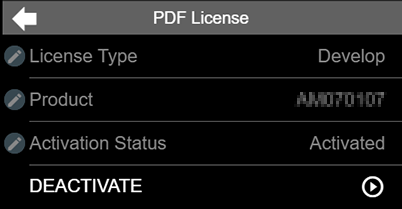

The [Activation Status] will show [Activated] if the activation key matches.

• [License Type], [Product] and [Activation Status] are read-only. • The initial [License Type] is [Demo] and the [Activation Status] shows [Not Activated]. • The [Activation Status] will show [Key Error] if the activation key does not match.

　

---
