Rotating the Page Orientation (CT4-LX)

You can specify the rotating angle of the page orientation for PDF direct printing.

The setting procedure for rotating the page orientation is as follows:

1.	Tap [SETTINGS] on the Home screen or Offline screen.

2.	Enter the password if it is enabled.

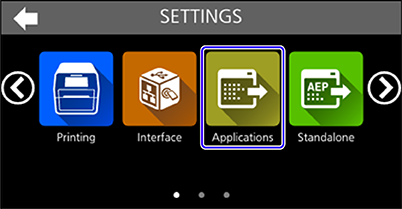

3.	Tap [Applications] to enter Applications mode.

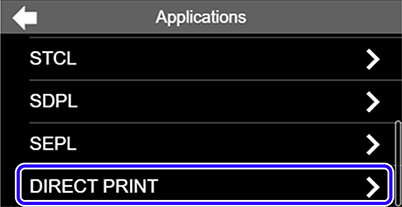

4.	Tap [DIRECT PRINT] to enter DIRECT PRINT mode.

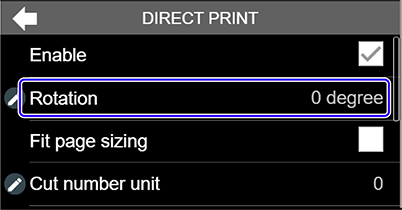

5.	Tap [Rotation].

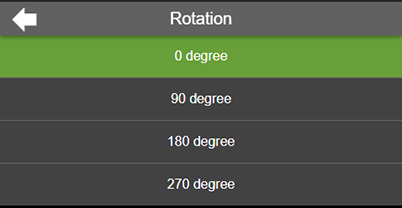

6.	Tap to select the rotating angle of the page orientation.

The options are as follow:

[0 degree]

Prints the page without rotation.

[90 degree]

Rotates the page orientation 90 degrees clockwise.

[180 degree]

Rotates the page orientation 180 degrees.

[270 degree]

Rotates the page orientation 270 degrees clockwise.

7.	Press the (Power/Home) button to show the Home screen.

8.	Press the (Power/Home) button to enter Online mode.

You can print to check the page orientation.

• The rotating angle cannot be set if the [Fit page sizing] is enabled. • The initial setting of [Rotation] is 0 degrees.

　

---
