[Wi-Fi] Menu

Appears only when the optional wireless LAN/Bluetooth kit is installed.

• After doing the settings, tap or press the / (Standby/Home) button. A message asking you whether to save the settings appears. Tap on the message to enable the new settings. Tap to cancel the new settings and return to the previous settings.

• [Wi-Fi Setting] does not appear when the [Enable] menu is disabled. • When [Wi-Fi Direct] is active, [IPv6 (Wi-Fi)] does not appear on the screen.

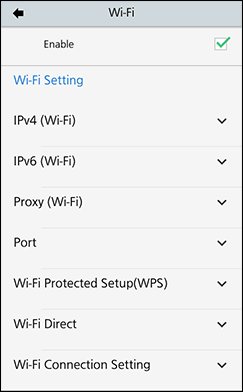

The following settings are available in the [Wi-Fi] menu:

[Enable]

Enable or disable the Wi-Fi connection.

[Wi-Fi Setting]

Set the wireless LAN.

The setting items are as follows:

[IPv4 (Wi-Fi)]

Configure IPv4 for Wi-Fi.

• After doing the settings, tap or press the / (Standby/Home) button. A message asking you whether to save the settings appears. Tap on the message to enable the new settings. Tap to cancel the new settings and return to the previous settings. • If there are any errors with the input information, a message asking you whether to discard changes appears. Tap on the message to discard the changes. Tap to close the dialog.

• When [Wi-Fi Direct] is active, [Mode], [DHCP] and [DNS] do not appear. In addition, you cannot change [IP Address], [Netmask], or [Gateway] if [DHCP] or [Wi-Fi Direct] is active. [DNS] cannot be changed if [Mode] is [DHCP].

The setting items are as follows:

[Mode]

Select the IP address assignment method.

The options are as follows:

DHCP

Automatically retrieve the IP address, gateway and subnet mask from the DHCP server.

Static

Manually set the IP address, gateway and subnet mask.

[DHCP]

Update the lease time and get the IP address from the DHCP server again.

Appears only if you have selected [DHCP] in the [Mode] menu.

[IP Address]

Set and check the IP address.

If you have selected [DHCP] in the [Mode] menu, the screen shows the IP address you received from the DHCP server.

If you have selected [Static] in the [Mode] menu, set the IP address.

The setting range is as follows:

000.000.000.000 to 255.255.255.255

[Netmask]

Set and check the subnet mask address.

If you have selected [DHCP] in the [Mode] menu, the screen shows the subnet mask address you received from the DHCP server.

If you have selected [Static] in the [Mode] menu, set the subnet mask address.

Each group of the address can be set among 0, 128, 192, 224, 240, 248, 252, 254 and 255.

The setting range is as follows:

128.000.000.000 to 255.255.255.254

[Gateway]

Set and check the default gateway address.

If you have selected [DHCP] in the [Mode] menu, the screen shows the gateway address you received from the DHCP server.

If you have selected [Static] in the [Mode] menu, set the default gateway address.

The setting range is as follows:

000.000.000.000 to 255.255.255.255

• The gateway address set here is shared with the settings in [Interface] > [Network] > [Settings] > [LAN] > [IPv4 (LAN)].

[DNS]

If you have selected [Static] in the [Mode] menu, set and check DNS server addresses.

The setting range is as follows:

000.000.000.000 to 255.255.255.255

• You can register up to three IP addresses for the DNS server. Tap to add different IP addresses. • The DNS server addresses set here are shared with the settings in [Interface] > [Network] > [Settings] > [LAN] > [IPv4 (LAN)].

[IPv6 (Wi-Fi)]

Configure IPv6 for Wi-Fi.

• After doing the settings, tap or press the / (Standby/Home) button. A message asking you whether to save the settings appears. Tap on the message to enable the new settings. Tap to cancel the new settings and return to the previous settings. • If there are any errors with the input information, a message asking you whether to discard changes appears. Tap on the message to discard the changes. Tap to close the dialog.

• When [Wi-Fi Direct] is active, this [IPv6 (Wi-Fi)] menu does not appear. In addition, you cannot change [IP Address], [Prefix Length], [Gateway], or [DNS] if [Mode] is anything other than [Static].

The setting items are as follows:

[Mode]

Select the IP address assignment method or disable IPv6.

The options are as follows:

Disable

Disable IPv6.

Auto

Automatically generate the IP address and gateway (stateless mode).

DHCP

Automatically retrieve the IP address and gateway from the DHCP server (stateful mode).

Static

Manually set the IP address, gateway and prefix length.

[DHCP]

Update the lease time and get the IP address from the DHCP server again.

Appears only if you have selected [DHCP] in the [Mode] menu.

[IP Address]

Set and check the IP address.

If you have selected [DHCP] in the [Mode] menu, the screen shows the IP address you received from the DHCP server.

If you have selected [Static] in the [Mode] menu, set the IP address.

The setting range is as follows:

0:0:0:0:0:0:0:1 to ffff:ffff:ffff:ffff:ffff:ffff:ffff:ffff

[Prefix Length]

If you have selected [Static] in the [Mode] menu, set the prefix.

The setting range is from 1 to 128.

[Gateway]

Set and check the default gateway address.

If you have selected [DHCP] in the [Mode] menu, the screen shows the gateway address you received from the DHCP server.

If you have selected [Static] in the [Mode] menu, set the default gateway address.

The setting range is as follows:

0:0:0:0:0:0:0:0 to ffff:ffff:ffff:ffff:ffff:ffff:ffff:ffff

• The gateway address set here is shared with the settings in [Interface] > [Network] > [Settings] > [LAN] > [IPv6 (LAN)].

[DNS]

If you have selected [Static] in the [Mode] menu, set the primary address of the DNS server.

The setting range is as follows:

0:0:0:0:0:0:0:0 to ffff:ffff:ffff:ffff:ffff:ffff:ffff:ffff

• You can register only one IP address for the DNS server for IPv6. • The DNS server address set here is shared with the settings in [Interface] > [Network] > [Settings] > [LAN] > [IPv6 (LAN)].

[Proxy (Wi-Fi)]

Configure the proxy for Wi-Fi.

The setting items are as follows:

[Enabled]

Enable or disable use of proxy.

• To enable the proxy, [Server] should be set and [Exclude] must contain at least 127.0.0.1 and localhost.

[Server]

Set the name or IP address of the proxy server.

Example: http://192.168.1.11

• Be sure to specify a format for the IP address that starts with http. If you specify an address that starts with https, then the certification check is not done and connection to a legitimate SOS server may be impossible.

• Server should be set with a valid name or IP address. • Hold "." to input a colon (:).

[Port No.]

Set the port number that allows communication with the proxy server.

The setting range is from 0 to 65535.

• Set a port number not used by other services. If port numbers that overlap with those used by other services are used, communication cannot be performed properly.

• To set the port number, [Server] should be set. • When set to 0, the setting will be blank and no port number will be specified.

[Username]

Set the username if you need a username to connect to the proxy server.

You can enter 1 to 8 characters. Alphabets (capital and small letters) and numbers can be used.

• To set the username, [Server] should be set.

[Password]

Set the password if you need a password to connect to the proxy server.

You can enter 1 to 16 characters. Alphabets (capital and small letters), numbers and symbols can be used.

• Some symbols cannot be used. If you enter a symbol that cannot be used, [Invalid value] appears on the screen.

• To set the password, [Server] should be set.

[Exclude]

Set names, IP addresses or domains for the proxy to exclude.

• Exclude must contain at least 127.0.0.1 and localhost.

[DHCP Options]

Set the DHCP options for the wireless LAN.

Available only if you have selected [DHCP] in the [IPv4 (Wi-Fi)] > [Mode] menu or [IPv6 (Wi-Fi)] > [Mode] menu.

The setting items are as follows:

[Update DNS (Option 81)]

Enable or disable DNS dynamic update.

[Hostname]

Set the hostname.

You can enter 0 to 255 characters. Alphabets, numbers and symbols can be used.

[Port]

Set the TCP/IP port number.

If AEP mode is enabled, there are only two ports available for LAN and wireless LAN connections.

For the USB+LAN model, if AEP mode is enabled and the wireless LAN interface is being used, this menu becomes unavailable.

Roles of Port1 to Port3

In the socket server function of TCP/IP, either of the following connection methods can be used.

The ports to be used and their roles change depending on the connection method and communication protocol.

Two-port connection

•	If AEP mode is enabled (initial value)

Port1 and Port3 can be used for both receiving print data and returning the product status. Port2 cannot be used.

•	If AEP mode is disabled

Port1 is used for receiving print data, and Port2 is used for returning the product status.

Two-port connection is available when the communication protocol is Status4.

One-port connection

One port is used for both receiving print data and returning the product status.

When the communication protocol is Status4, Port3 is used.

When the communication protocol is Status3 or Status5, Port1 or Port3 is used.

• AEP does not support Status3, Status4 and Status5 protocols.

The setting items are as follows:

[Port1]

Set the port number for Port1.

While in the two-port connection in AEP mode, this port can be used for both receiving print data and returning the product status.

If AEP mode is disabled, and while in the two-port connection of Status4, this port is used for receiving print data. While in the one-port connection of Status3/Status5, this port is used for both receiving print data and returning the product status.

The setting range is from 1 to 65535.

• Each port (1, 2 and 3) must be set to different values. • Set a value other than 20, 21, 22, 53, 80, 123, 161, 443, 465, 515, 546, 547, 587, 8080, 8883, or 19541. These values duplicate other port numbers, so that correct communications would be impossible.

• AEP does not support Status3, Status4 and Status5 protocols.

[Port2]

Set the port number for Port2.

For the two-port connection of Status4, this port is used for returning the product status.

The setting range is from 1 to 65535.

• Each port (1, 2 and 3) must be set to different values. • Set a value other than 20, 21, 22, 53, 80, 123, 161, 443, 465, 515, 546, 547, 587, 8080, 8883, or 19541. These values duplicate other port numbers, so that correct communications would be impossible.

• This setting is disabled when AEP mode is enabled.

[Port3]

Set the port number for Port3.

While in the two-port connection in AEP mode, this port can be used for both receiving print data and returning the product status.

If AEP mode is disabled, and while in the one-port connection of Status3/Status4/Status5, this port is used for both receiving print data and returning the product status.

The setting range is from 1 to 65535.

• Each port (1, 2 and 3) must be set to different values. • Set a value other than 20, 21, 22, 53, 80, 123, 161, 443, 465, 515, 546, 547, 587, 8080, 8883, or 19541. These values duplicate other port numbers, so that correct communications would be impossible.

• You can change the return status format of Port3 to legacy status by enabling [Legacy Status for Port 9100]. • AEP does not support Status3, Status4 and Status5 protocols.

[Flow Control]

Set the communication protocol.

The options are as follows:

•

[STATUS4]

•	[STATUS4 ENQ]

•

[STATUS3]

•

[STATUS5]

•

[NONE]

[TCP Connection Queue]

Set whether to allow queuing for connection when multiple hosts or applications are sending connection requests to the product.

While connecting with one host or application, the product can receive connection requests from other hosts or applications. The subsequent connection requests are put on hold, and processed in order of reception after the first connection is closed.

While connecting with one host or application, the product cannot receive connection requests from other hosts or applications.

• When you have enabled the setting, be sure to use one port connection for Status3, Status4, and Status5. Operation using two port connections for Status4 is not guaranteed.

[Legacy Status for Port 9100]

Set whether to change the return status format of Port3 to legacy status.

Does not appear if you have selected [NONE] in the [Flow Control] menu.

In legacy status, the return status format of Port3 becomes as follows:

Status3

Mode	Data format
Normal ([Legacy Status for Port 9100] is disabled)
Legacy status ([Legacy Status for Port 9100] is enabled)

Status4

Mode	Data format
Normal ([Legacy Status for Port 9100] is disabled)
Legacy status ([Legacy Status for Port 9100] is enabled)

Status5

Mode	Data format
Normal ([Legacy Status for Port 9100] is disabled)
Legacy status ([Legacy Status for Port 9100] is enabled)

[BCC]

Enable or disable the BCC check function.

Appears only if you have selected [STATUS5] in the [Flow Control] menu.

[Delay Reply ENQ]

Set the period to delay status reply to status request ENQ.

Available only if you have selected [STATUS3], [STATUS4 ENQ], [STATUS5], or [NONE] in the [Flow Control] menu.

The setting range is from 0 to 9999 ms.

• Normally, keep this setting at the initial value.

[Status4 Cyclic Response]

Set the interval for the cyclic status response.

Available only if you have selected [STATUS4] in the [Flow Control] menu.

The setting range is from 100 to 999 ms.

[Wi-Fi Protected Setup(WPS)]

Set the wireless LAN connection using the push button or PIN code method.

• Refer to the manual of the access point device for its operation. • Not available when [Wi-Fi Direct] is active.

The setting items are as follows:

[Button (PBC)]

Set the wireless LAN connection using the push button method.

1.	Tap [Button (PBC)] in the [Wi-Fi Protected Setup(WPS)] menu.

2.	When [Scanning...] appears on the screen, press the WPS button on the access point of the wireless LAN device.

3.	When the connection to the access point is established, [Successfully configured.] appears on the screen.

[PIN]

Set the wireless LAN connection using the PIN code method.

1.	Tap [PIN] in the [Wi-Fi Protected Setup(WPS)] menu.

2.	When [Scanning...] appears on the screen, set the PIN code shown on the screen to the access point of the wireless LAN or computer.

3.	When the connection to the access point is established, [Successfully configured.] appears on the screen.

[Wi-Fi Direct]

Set the Wi-Fi Direct function.

The Wi-Fi Direct function is enabled only if you have selected [Infrastructure] in the [Wi-Fi Connection Setting] > [Mode] menu. If you have changed the setting from [Ad-hoc] to [Infrastructure] in the [Wi-Fi Connection Setting] > [Mode] menu, reboot the product before setting the Wi-Fi Direct function.

　

The setting procedure is as follows:

1.	Set the device name for the product using [Device Name]. You can enter 1 to 16 characters. Alphabets (capital and small letters), numbers and symbols can be used.

2.	Select [Connect] to search and show the connectable device names or to accept connection requests when the product is the GO (Group Owner). Tap the device name you want to connect.

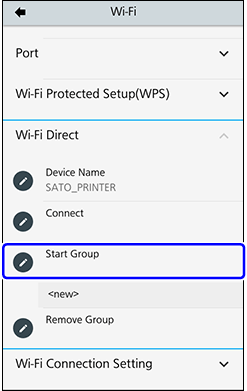

3.	Select [Start Group] if you want to start a new persistent group or select a group from the list.

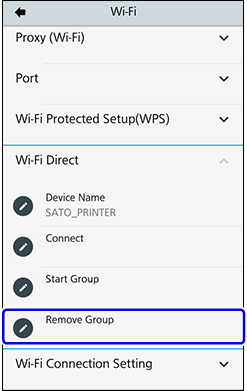

4.	Select [Remove Group] to remove the persistent group in step 3.

5.	Complete the connection according to the display on the product or device you want to connect.

6.	Tap [Disconnect] if you want to stop the connection.

• You can connect a maximum of 10 devices. • When Wi-Fi Direct is active, [Device Name] cannot be changed. • [Start Group] and [Remove Group] are shown only if the product is not connected to a Wi-Fi Direct network. • [Disconnect] is shown if the product is connected to a Wi-Fi Direct network. • After setting up a start group, the product will be set to the GO (Group Owner) and will wait for a connection request from another device. • If the product is powered off during a persistent group connection, the group will be started automatically after the product is powered on.

[Wi-Fi Connection Setting]

Set the wireless LAN settings.

The setting items are as follows:

[SSID]

Set the SSID.

The screen shows the Wi-Fi network detected by the product.

Tap the name of the Wi-Fi network you want to connect.

To register a Wi-Fi network manually, tap and enter the name of the network.

You can enter a maximum of 32 characters. Alphabets (capital and small letters), numbers and symbols can be used.

[Hidden SSID]

Set the hidden SSID (stealth function).

Appears only if you have selected [Infrastructure] in the [Mode] menu.

[Mode]

Set the communication method of the wireless LAN.

The options are as follows:

•	[Infrastructure]

•

[Ad-hoc]

[Channel]

Set the communication channel.

[Channel] can be set only if you have selected [Ad-hoc] in the [Mode] menu.

The number of channels you can set varies depending on the region of the product.

[Security]

Set the security method of the network. Set the security methods so that the product, host and network devices match.

The options are as follows:

•

[None]

•

[WEP]

•	[WPA2+WPA]

•

[WPA2]

•	[Dynamic WEP]

If you have selected [Ad-hoc] in the [Mode] menu, only [None] and [WEP] will be available.

[WEP Conf.]

Set the WEP key.

Appears only if you have selected [WEP] in the [Security] menu.

The setting items are as follows:

[Authentication]

Set the WEP authentication method.

The options are as follows:

•	[Open System]

•	[Shared Key]

[Key Index]

Set the key index.

Set the key index (WEP key) according to the access point of the wireless LAN you connect.

The setting range is from 1 to 4.

• Depending on the access point, the range of the key index may be 0 to 3. In such a case, if you have set the product to 1, set the access point to 0.

[Key #1] to [Key #4]

Set the WEP key #1 - key #4.

You can enter alphabet (capital and small letters) and numbers.

Depending on the length of the WEP key, the number of characters you can set is as follows:

•	When the key length is 64 bits

ASCII: Five characters

Hexadecimal: 10 characters

•	When the key length is 128 bits

ASCII: Thirteen characters

Hexadecimal: 26 characters

[WPA Conf.]

Set the WPA authentication.

Appears only if you have selected [WPA2+WPA] or [WPA2] in the [Security] menu.

The setting items are as follows:

[WPA Authentication]

Set the WPA authentication method.

The options are as follows:

•	[Personal (PSK)]

•	[Enterprise (802.1x)]

•

[CCKM]

[PSK]

Set the PSK shared key.

Appears only if you have selected [Personal (PSK)] in the [WPA Authentication] menu.

You can enter 8 to 63 ASCll characters or 64 hexadecimal digits. Alphabets, numbers and symbols can be used.

[EAP Conf.]

Set the functions for EAP.

Appears only if you have selected items other than [Personal (PSK)] in the [WPA Authentication] menu or if you have selected [Dynamic WEP] in the [Wi-Fi Connection Setting] > [Security] menu.

The setting items are as follows:

[EAP Mode]

Set the EAP Mode (authentication mode).

The options are as follows:

•

[FAST]

•

[LEAP]

•

[PEAP]

•

[TLS]

•

[TTLS]

[ECC Cipher Suites]

Enable or disable the ECC Cipher Suites.

Appears only if you have selected [FAST] in the [EAP Mode] menu.

[Inner Method]

Set the inner method.

Appears only if you have selected [FAST], [PEAP], or [TTLS] in the [EAP Mode] menu.

•	If you have selected [FAST] in the [EAP Mode] menu, the inner method is set to [AUTO].

•	If you have selected [PEAP] in the [EAP Mode] menu, the inner method is set to [MSCHAPv2].

•	If you have selected [TTLS] in the [EAP Mode] menu, the options are [MSCHAPv2], [MSCHAP], [CHAP], and [PAP].

[Username]

Set the user name.

You can enter 0 to 63 characters. Alphabets, numbers and symbols can be used.

[Password]

Set the password.

You can enter 0 to 32 characters. Alphabets, numbers and symbols can be used.

[Anon. Outer ID]

Set the external ID.

Appears only if you have selected [FAST], [PEAP], or [TTLS] in the [EAP Mode] menu.

You can enter 0 to 63 characters. Alphabets, numbers and symbols can be used.

[Verify Server Cert.]

Enable or disable server certificate validation.

Appears only if you have selected anything other than [LEAP] in the [EAP Mode] menu.

[Private Key P/W]

Set the Private Key password.

Appears only if you have selected [TLS] in the [EAP Mode] menu.

You can enter 0 to 64 characters. Alphabets, numbers and symbols can be used.

[PAC Auto Provisioning]

Enable or disable PAC auto provisioning.

Appears only if you have selected [FAST] in the [EAP Mode] menu.

[PAC Password]

Set the PAC password.

Appears only if you have selected [FAST] in the [EAP Mode] menu and if you disabled [PAC Auto Provisioning].

You can enter 0 to 64 characters. Alphabets, numbers and symbols can be used.

---

Related Topics

Settings Mode Operations

Setting Value Input
