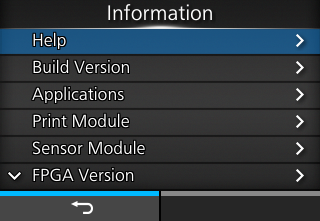

[Information] Menu

The following settings are available in the [Information] menu: In the [Information] menu, you cannot change a setting in the display items.

[Help]

Shows the guidance video.

You can view the video for loading the media, the cleaning method and replacement method of consumables.

The list of videos are as follows:

[Install Paper]

Shows the video for loading the media.

The items are as follows:

[Roll]

Shows the video for loading the media roll.

The items are as follows:

Continuous/Tearoff

Shows the video for loading the media roll to the product to print in continuous/tear-off mode.

Dispenser

Shows the video for loading the media roll to the product to print in dispenser mode.

Linerless tearoff

Shows the video for loading the media roll to the product to print in linerless tearoff mode.

[Fanfold]

Shows the video for loading the fan-fold media.

The items are as follows:

Continuous/Tearoff

Shows the video for loading the fan-fold media.

[Replace Paper]

Shows the video for replacing the media.

The items are as follows:

[Roll]

Shows the video for replacing the media roll.

The items are as follows:

Continuous/Tearoff

Shows the video for replacing the media roll to the product to print in continuous/tear-off mode.

Dispenser

Shows the video for replacing the media roll to the product to print in dispenser mode.

Linerless tearoff

Shows the video for replacing the media roll to the product to print in linerless tearoff mode.

[Fanfold]

Shows the video for replacing the fan-fold media.

The items are as follows:

Continuous/Tearoff

Shows the video for replacing the fan-fold media.

[Replace Head] (Standard models only)

Shows the video for replacing the print head.

[Replace Platen] (Standard models only)

Shows the video for replacing the platen roller.

[Replace Battery]

Shows the video for replacing the battery.

[Cleaning]

Shows the video for cleaning the product.

[Build Version]

Shows the information and version of the product.

Name

Shows the name of the build version.

Date

Shows the build date.

Checksum

Shows the checksum of the build version.

Kernel Version

Shows the kernel version.

Boot Version

Shows the boot version.

[Applications]

Shows the printer language, etc., and versions of applications that are installed on the product.

[Installation Log]

Show or clear the installation log data in the product.

Press the button (CLEAR) to clear the selected log data.

• This screen does not appear if there is no log data in the product.

The setting items are as follows:

[RPM log]

Shows a list of RPM log files containing three sections: installed, updated and obsolete.

The RPM log file is created after installing a pkg-file containing rpm-files.

[System Restore]

Shows the system restore log.

The system restore log file is created after installing a pkg-file that caused a state in which the product's operator panel cannot be operated.

[Print Module]

Shows the information about the print module of the product.

The item is as follows:

Main

Shows the Main firmware information.

[Sensor Module]

Shows the information about the sensor module of the product.

The item is as follows:

Main

Shows the Main firmware information.

[FPGA Version]

Shows the FPGA version on the product.

The item is as follows:

Name

Shows the FPGA version.

[Counters]

Shows the counter information of the product.

• Only SATO authorized service personnel are permitted to clear the counter.

The setting items are as follows:

[Head]

Shows the head counter information of the product.

Life

Shows the current print distance.

Head 1

Head 2

Head 3

[Head 1] shows the current print distance. When you replace the print head and the counter is cleared, the value of [Head 2] appears in [Head 3] and the value of [Head 1] appears in [Head 2]. [Head 1] will start to count from 0 again.

[Estimated Printable]

Shows estimates of the remaining number of sheets that can be printed, based on the remaining battery power, the number of sheets output, and the battery consumption.

The count is cleared at the following times.

•	When the product is powered off

•	When the top cover is opened

•	When setting values are initialized

•	When charging is started

• When using the battery eliminator (option), the measurement is not applicable.

[USB Serial]

Shows the USB serial number.

[Wi-Fi]

Shows the address of the wireless LAN interface.

The items are as follows:

Wi-Fi IPv4 Address

Shows the IPv4 address of the wireless LAN.

Wi-Fi IPv6 Address

Shows the IPv6 address of the wireless LAN.

Does not appear when Wi-Fi Direct is active.

Wi-Fi MAC

Shows the MAC address of the wireless LAN.

Wi-Fi Region

Shows the region information of the wireless LAN.

Wi-Fi Status

Shows the status of the wireless LAN.

[Wi-Fi Direct]

Shows the connection information of Wi-Fi Direct.

Appears only if Wi-Fi Direct is the active interface and you are connected using Wi-Fi Direct.

SSID

Shows the SSID.

Role

Shows the Wi-Fi Direct connection status with the following item:

GO: Group Owner

Device Address

Shows the device address.

IP Address

Shows the IP Address.

Passphrase

Shows the passphrase.

Channel

Shows the channel.

[Wi-Fi Versions]

Shows the version of the wireless LAN.

[Bluetooth]

Shows the information of the Bluetooth connection.

---
