Initial Printer Settings (CL4NX/CL6NX/CL4NX Plus/CL6NX Plus/S84NX/S86NX)

• This manual uses screenshots of the CL4NX series printer in its descriptions. The screen is slightly different when using the S84NX/S86NX series printers.

To print the PDF data properly, you need to perform the following initial printer settings:

1.	Make sure that the PDF direct print mode is enabled.

After the PDF Direct Print firmware is installed on the printer, the direct print mode is enabled by default.

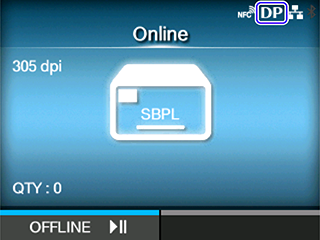

The DP (Direct Print) status icon is shown on the status bar at the top of the display.

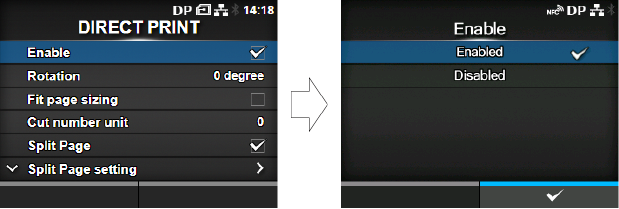

If the DP status icon is not shown, you can enable the direct print mode in the [Settings] > [Applications] > [DIRECT PRINT] menu. Select [Enable] to show the [Enable] menu and select [Enabled].

2.	Set the print language to SBPL.

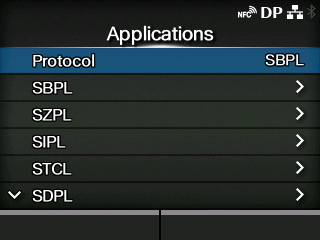

PDF Direct Print only works on SBPL (SATO Barcode Printer Language) protocol. You need to set the printer language to SBPL in the [Settings] > [Applications] > [Protocol] menu.

• Do not set the [Protocol] to [AUTO].

3.	Set the label size.

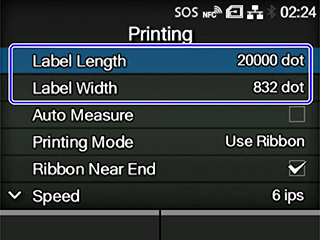

Set the length and width of the label in the [Settings] > [Printing] > [Label Length] and the [Settings] > [Printing] > [Label Width] menus.

• The Auto Measure function is not recommended to be used for PDF direct print. Disable the [Auto Measure] and set the [Label Length] and [Label Width] of the label accordingly.

4.	Set other printer settings to match the label.

Set the following printer settings based on the label used.

◦	[Settings] > [Printing] > [Printing Mode]

◦	[Settings] > [Printing] > [Speed]

◦	[Settings] > [Printing] > [Sensor Type]

◦	[Settings] > [Printing] > [Darkness]

• Please refer to the CL4NX/CL6NX operator manual, CL4NX Plus/CL6NX Plus operator manual or S84NX/S86NX operator manual for more detailed information. CL4NX/CL6NX operator manual CL4NX Plus/CL6NX Plus operator manual S84NX/S86NX operator manual

　

---
