License Activation (CL4NX/CL6NX/CL4NX Plus/CL6NX Plus/S84NX/S86NX)

The PDF Direct Print license is initially activated on the printer if the user has already purchased the license. A license activation key is required to perform the activation.

If the license is not activated, the PDF Direct Print will be running on Demo mode.

• The license activation should be performed by SATO technical support personnel. • This manual uses screenshots of the CL4NX series printer in its descriptions. The screen is slightly different when using the S84NX/S86NX series printers.

The license activation procedure intended for SATO technical support personnel is as follows:

1.	When the printer is in Online mode, press the button to change to Offline mode.

2.	Press the button to show the [Settings] mode.

3.	Select [Applications] using the / buttons, then press the button.

4.	Select [DIRECT PRINT] using the / buttons, then press the button.

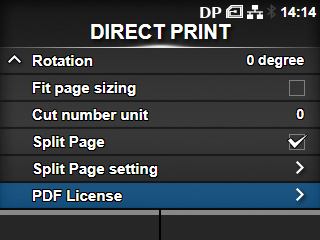

5.	Select [PDF License] using the / buttons, then press the button.

6.	Select [Activation Key] using the / buttons, then press the button.

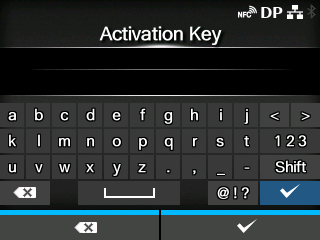

7.	Enter the license activation key. Select a character using the /// buttons, then press the button to enter the character on the text box.

The activation key is an 8-digit number issued by the license management server.

8.	Press the / button to select to save the entered activation key.

The [Activation Status] will show [Activated] if the activation key matches.

• [License Type], [Product] and [Activation Status] are read-only. • The initial [License Type] is [Demo] and the [Activation Status] shows [Not Activated]. • The [Activation Status] will show [Key Error] if the activation key does not match.

　

---
