Resizing the Image to Fit the Page (CL4NX/CL6NX/CL4NX Plus/CL6NX Plus/S84NX/S86NX)

• This manual uses screenshots of the CL4NX series printer in its descriptions. The screen is slightly different when using the S84NX/S86NX series printers.

By enabling the [Fit page sizing] function, the printer automatically rotates, enlarges or reduces the print image to best fit the label page size.

This function is convenient for correcting the cropped printout if the print image is too big for the label size, or removing the whitespace if the print image is too small for the label size.

To enable this function, perform the following procedure.

1.	When the printer is in Online mode, press the button to change to Offline mode.

2.	Press the button to show the [Settings] mode.

3.	Select [Applications] using the / buttons, then press the button.

4.	Select [DIRECT PRINT] using the / buttons, then press the button.

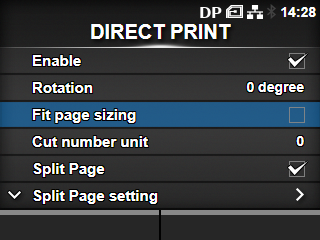

5.	Select [Fit page sizing] using the / buttons, then press the button.

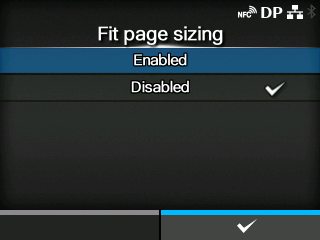

The [Fit page sizing] screen appears.

6.	Select [Enabled] using the / buttons.

7.	Press the / button or button to save the setting.

8.	Press the button to change to Offline mode.

9.	Press the button again to change to Online mode.

You can print to check the print image.

• When the [Fit page sizing] is enabled, the settings for the [Rotation] are invalid. • The initial setting of [Fit page sizing] is disabled.

　

---
