Rotating the Page Orientation (CL4NX/CL6NX/CL4NX Plus/CL6NX Plus/S84NX/S86NX)

• This manual uses screenshots of the CL4NX series printer in its descriptions. The screen is slightly different when using the S84NX/S86NX series printers.

You can specify the rotating angle of the page orientation for PDF direct printing.

The setting procedure for rotating the page orientation is as follows:

1.	When the printer is in Online mode, press the button to change to Offline mode.

2.	Press the button to show the [Settings] mode.

3.	Select [Applications] using the / buttons, then press the button.

4.	Select [DIRECT PRINT] using the / buttons, then press the button.

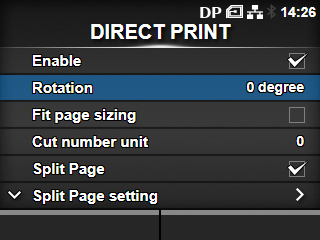

5.	Select [Rotation] using the / buttons, then press the button.

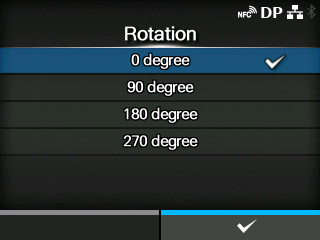

6.	Select the rotating angle of the page orientation using the / buttons.

The options are as follow:

[0 degree]

Prints the page without rotation.

[90 degree]

Rotates the page orientation 90 degrees clockwise.

[180 degree]

Rotates the page orientation 180 degrees.

[270 degree]

Rotates the page orientation 270 degrees clockwise.

7.	Press the / button or button to save the setting.

8.	Press the button to change to Offline mode.

9.	Press the button again to change to Online mode.

You can print to check the page orientation.

• The rotating angle cannot be set if the [Fit page sizing] is enabled. • The initial setting of [Rotation] is 0 degrees.

　

---
