Test Printing for Split Print Function (CT4LX)

By enabling the [Split test] mode, you can perform test printing for the split print function. When the PDF data is sent to the printer, only the split images of the first page of the PDF document are printed.

This is useful for checking the printout after configuring the items in the [Split Page setting] menu.

To enable the [Split test] mode, perform the following procedure.

1.	In the [Settings] > [Applications] > [DIRECT PRINT] menu, tap [Split Page setting] to enter Split Page setting mode.

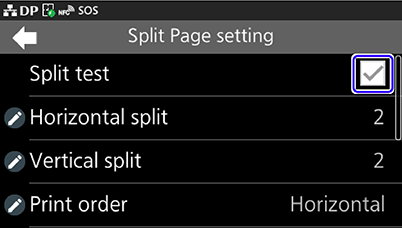

The [Split Page setting] screen appears.

2.	Tap the [Split test] check box to select it.

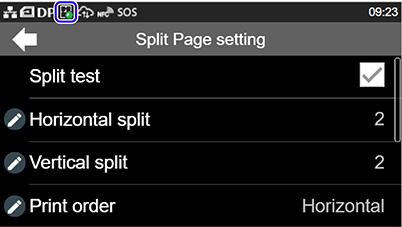

When the [Split test] mode is enabled, the split test icon is shown on the status bar at the top of the display.

3.	Send the PDF data to the printer for test printing.

• After performing the test print, you must disable the [Split test] mode to resume back to the actual printing of the split print function.

　

---
