Setting the Print Order of the Split Images (CL4NX/CL6NX/CL4NX Plus/CL6NX Plus/S84NX/S86NX)

• This manual uses screenshots of the CL4NX series printer in its descriptions. The screen is slightly different when using the S84NX/S86NX series printers.

You can set the sequence of the split images to be printed out.

The setting procedure for the print order of the split images is as follows:

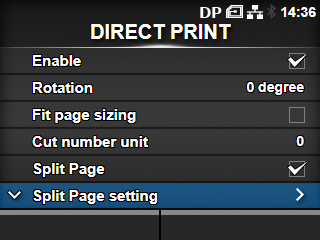

1.	In the [Settings] > [Applications] > [DIRECT PRINT] menu, select [Split Page setting] using the / buttons.

2.	Press the button.

The [Split Page setting] screen appears.

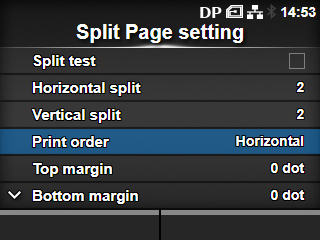

3.	Select [Print order] using the / buttons, then press the button.

The [Print order] screen appears.

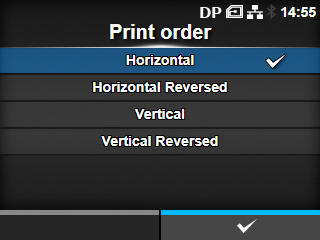

4.	Select the printing sequence of the split images using the / buttons.

The options are as follow:

[Horizontal]

The printing sequence of the split images is from top left to top right, then bottom left to bottom right.

[Horizontal Reversed]

The printing sequence of the split images is from top right to top left, then bottom right to bottom left.

[Vertical]

The printing sequence of the split images is from top left to bottom left, then top right to bottom right.

[Vertical Reversed]

The printing sequence of the split images is from top right to bottom right, then top left to bottom left.

5.	Press the / button or button to save the setting.

　

---
