Specifying the Number of Split Images (CL4NX/CL6NX/CL4NX Plus/CL6NX Plus/S84NX/S86NX)

• This manual uses screenshots of the CL4NX series printer in its descriptions. The screen is slightly different when using the S84NX/S86NX series printers.

You can specify the number of split images on the page of the PDF document with the [Horizontal split] and [Vertical split] settings in the [Split Page setting] menu.

The [Horizontal split] specified the number of images to be split horizontally across the page.

The [Vertical split] specified the number of images to be split vertically down the page.

The setting procedure for specifying the number of split images is as follows:

1.	In the [Settings] > [Applications] > [DIRECT PRINT] menu, select [Split Page setting] using the / buttons.

2.	Press the button.

The [Split Page setting] screen appears.

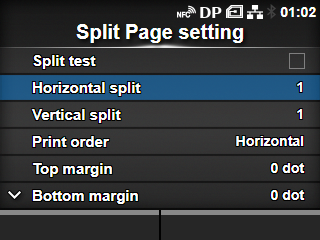

3.	Select [Horizontal split] using the / buttons, then press the button.

The [Horizontal split] screen appears.

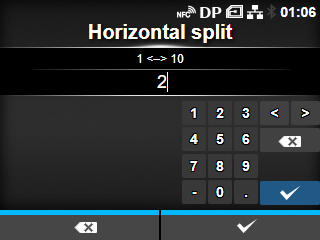

4.	Set the [Horizontal split] value. Select a number using the /// buttons, then press the button to enter the number on the text box.

The setting range of the [Horizontal split] is from 1 to 10.

5.	Press the / button to save the value.

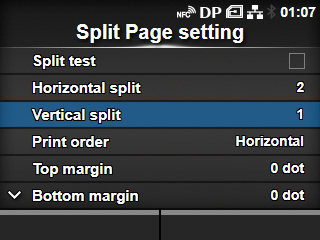

6.	Select [Vertical split] using the / buttons, then press the button.

The [Vertical split] screen appears.

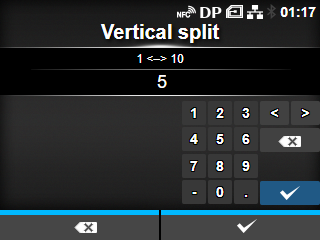

7.	Set the [Vertical split] value. Select a number using the /// buttons, then press the button to enter the number on the text box.

The setting range of the [Vertical split] is from 1 to 10.

8.	Press the / button to save the value.

　

---
