Test Printing for Split Print Function (CL4NX/CL6NX/CL4NX Plus/CL6NX Plus/S84NX/S86NX)

• This manual uses screenshots of the CL4NX series printer in its descriptions. The screen is slightly different when using the S84NX/S86NX series printers.

By enabling the [Split test] mode, you can perform test printing for the split print function. When the PDF data is sent to the printer, only the split images of the first page of the PDF document are printed.

This is useful for checking the printout after configuring the items in the [Split Page setting] menu.

To enable the [Split test] mode, perform the following procedure.

1.	In the [Settings] > [Applications] > [DIRECT PRINT] menu, select [Split Page setting] using the / buttons.

2.	Press the button.

The [Split Page setting] screen appears.

3.	Select [Split test] using the / buttons, then press the button.

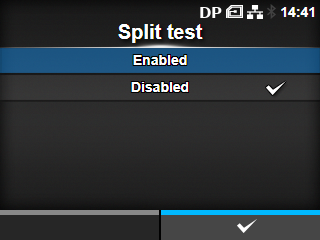

4.	Select [Enabled] using the / buttons.

5.	Press the / button or button to save the setting.

When the [Split test] mode is enabled, the split test icon is shown on the status bar at the top of the display.

6.	Send the PDF data to the printer for test printing.

• After performing the test print, you must disable the [Split test] mode to resume back to the actual printing of the split print function.

　

---
