This functionality enables users to select an existing configuration file to configure the printer via TCP/IP (for printers connected via LAN or Wi-Fi), Bluetooth, or NFC interface. Applying the same printer configuration to multiple printers of the same model can be made more efficient by using this function.

The procedure for selecting the configuration file is as follows:

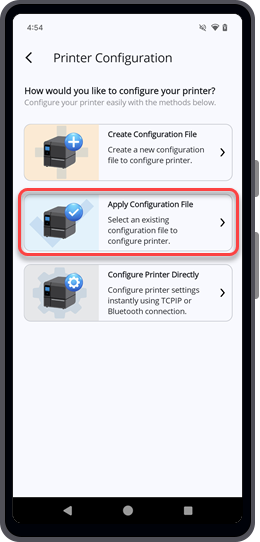

1.	On the [Printer Configuration] screen, tap [Apply Configuration File].

The file manager appears, showing the files in the default folder.

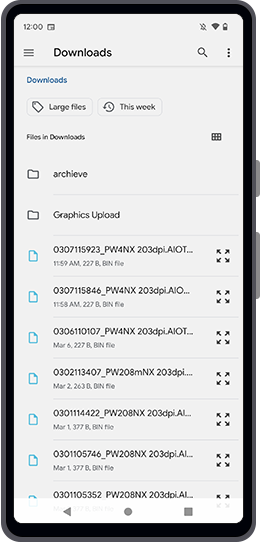

2.	On the folder screen, select the desired configuration file to be applied to the printer.

The configuration file should be in .AIOTNFC extension.

• The above folder screen is for illustrative purpose, you will see a different screen depending on your device.

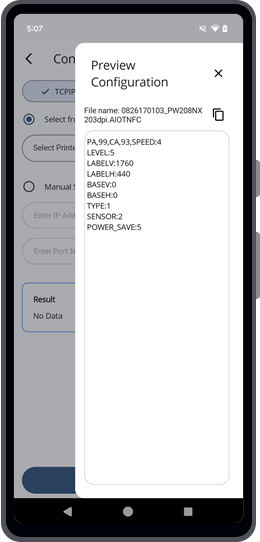

3.	On the [Configure Printer] screen, tap the icon on the upper right corner to confirm the content of the selected configuration file.

　

The content of the selected configuration file is shown.

Tap to copy the content to the clipboard.

Tap to close the [Preview Configuration] dialog.

4.	Select the interface and the ways that you want to connect and apply the configuration file to the printer.

　

The following interfaces and options are available:

[TCPIP] (For printers connected via LAN or Wi-Fi)

Configuring Printer Connected via TCP/IP (LAN/Wi-Fi) From the Printer List

Configuring Printer Connected via TCP/IP (LAN/Wi-Fi) By Entering IP Address Manually

[Bluetooth]

Configuring Printer Connected via Bluetooth From the Printer List (For Android Device Only)

Configuring Printer Connected via Bluetooth From the Paired Bluetooth Device List (For Android Device)

Configuring Printer Connected via Bluetooth From the Paired Bluetooth Device List (For iPhone)

Configuring Printer Connected via Bluetooth by Entering Bluetooth Address Manually (For Android Device Only)

[NFC]

Configuring Printer via NFC Interface

　

---
